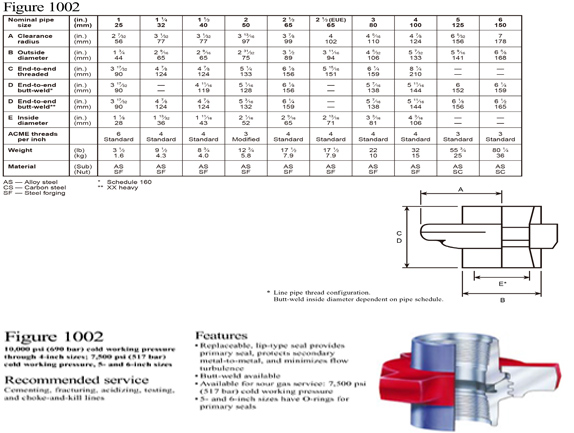

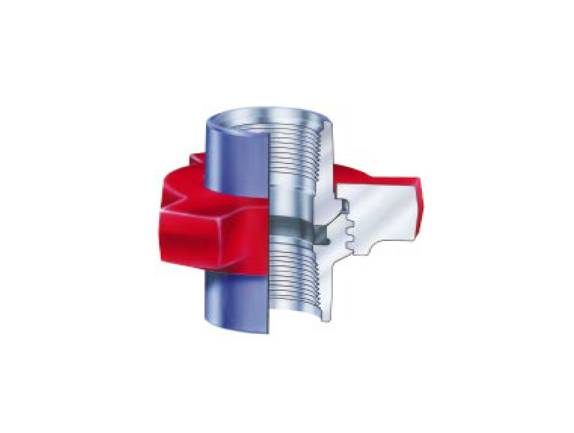

Fig 1002 Hammer Union

Working Pressure:

• 10,000psi (690 bar) through 4-inch sizes;

• 7,500 psi (517bar), 5-and 6-inch sizes


Features:

• Replaceable,lip-type seal provides primary seal,protects secondary metal-to-metal,and minimizes flow turbulence

• Butt-weld available

• Available for sour gas service:7,500 psi (517 bar)cold working pressure

• 5-and 6-inch sizes have O-rings for primary seals

Recommended Service:

Cementing, fracturing, acidizing, testing, and choke-and-kill lines
