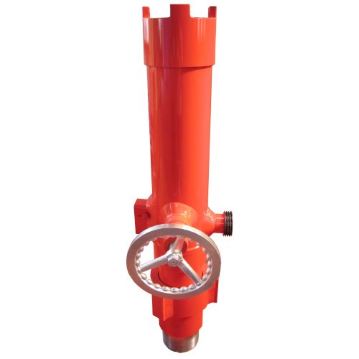

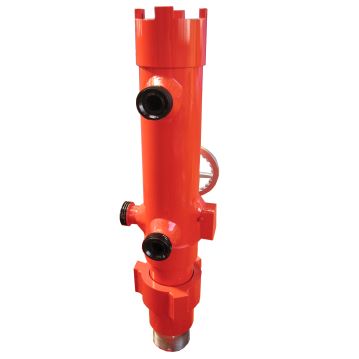

The single plug cementing head is special tool for pumping slurry and releasing plug andcan be connected with casing.
The single plug cementing head is special tool for pumping slurry and releasing plug andcan be connected with casing.
Features
Main parts are made from AISI4145H alloy steel.
Quick-latch adapter is designed to offer easier, faster and safer makeup for two-stage cementing.
It is manufactured utilizing API grade steels with API threads.
Positive lever indicates plug releasing.
Balance pipe is developed.
Technical Parameters
Size, mm Specifications, (in) | Φ139.7 (5½") | Φ168 (6⅝") | Φ177.8 (7") | Φ194 (7⅝") | Φ244.5 (9⅝") | Φ273 (10¾") | Φ339.7 (13⅜") |
Overall Length, mm | 1460 | 1500 | 1500 | 1550 | 1750 | 1750 | 1780 |
Manifold | 2"Union | ||||||
I.D. of Plug Container, mm | Φ125 | Φ150 | Φ160 | Φ175 | Φ225 | Φ250 | Φ320 |
Length of Plug Container, mm | 400 | 450 | 450 | 450 | 550 | 550 | 600 |
Working Pressure, MPa | 35,50 | 35,50 | 35,50 | 35,50 | 35,50 | 35 | 35 |
