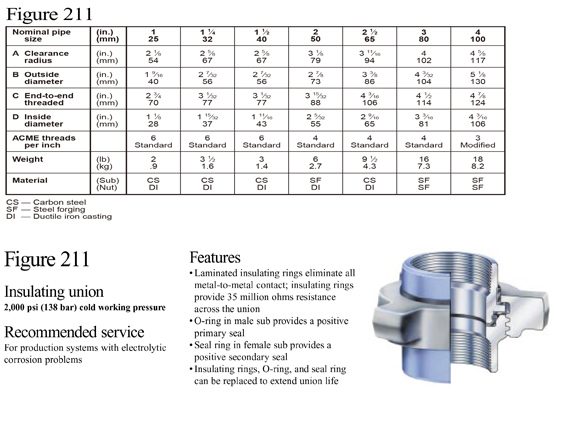

Fig 211 Hammer Union

Working Pressure:

2,000 psi(138 bar)

Features:

• Laminated insulating rings eliminate all metal-to-metal contact;insulating rings

• Provide 35 million ohms resistance across the union

• O-ring in male sub provides a positive primary seal

• Seal ring in female sub provides a positive secondary seal

• Insulating rings,O-ring,and seal ring can be replaced to extend union life

Recommended Service:

For production systems with electrolytic corrosion problems
